Hammond Manufacturing: 1550ZF Series Watertight Diecast Aluminum Enclosures w/ Flanges

October 9, 2024

Introducing the 1550ZF Series of watertight diecast aluminum enclosures with flanges, from Hammond Manufacturing.

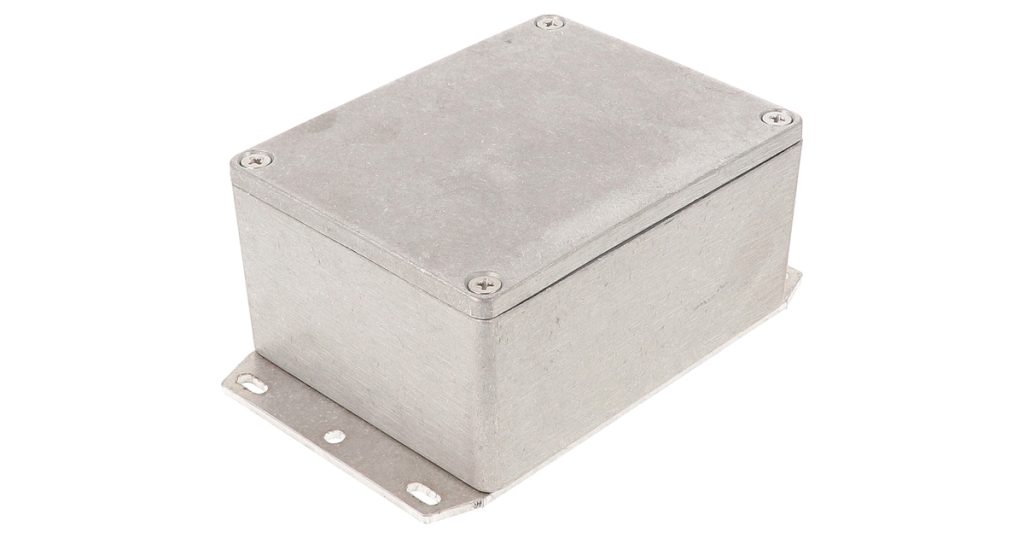

The 1550ZF Series is a thick-wall diecast aluminum watertight electronic instrument enclosure. The rugged diecast aluminum alloy is tough yet easy to machine, with a two piece tongue and groove construction for protection against access of dust and water. A strong spot-welded bottom flange allows for easy mounting. An unpainted version of the enclosure is vibra finished for a smooth surface with no sharp edges, while a textured black version is coated with tough polyester powder for a lasting finish, even after machining, with a finish that is applied outside and inside the enclosure.

More 1550ZF Series Features

  • Lid is secured with either two, four, or six stainless steel Philips head machine screws, depending on enclosure size.
  • Lid screws are outside the gasket protection area to eliminate the need for o-rings.
  • Lid screws are self-captivating on six sizes: 1550Z107F, 1550Z108F, 1550Z116F, 1550Z117F, 1550Z137F, and 1550Z139F. Lid holes are slightly undersized and threaded with the first installation.
  • Gasket is pre-formed, one-piece silicone rubber and installs easily into lid groove.
  • Gasket has a temperature rating of -40°C to +150°C (-40°F to 302°F).
  • No internal ribs for easy installation of connectors without interference or additional milling.

Ratings:

  • cUL and UL listed under file #E71073.
  • Independently tested to meet IP66, IP67, and IP68 as well as NEMA Type 4, 4X, 12 and 13 ratings.
    • Customers should conduct their own testing to determine suitability for any specific application.
  • All sizes except 1550Z101F carry an impact rating of IK08 per IEC62262.

Source
