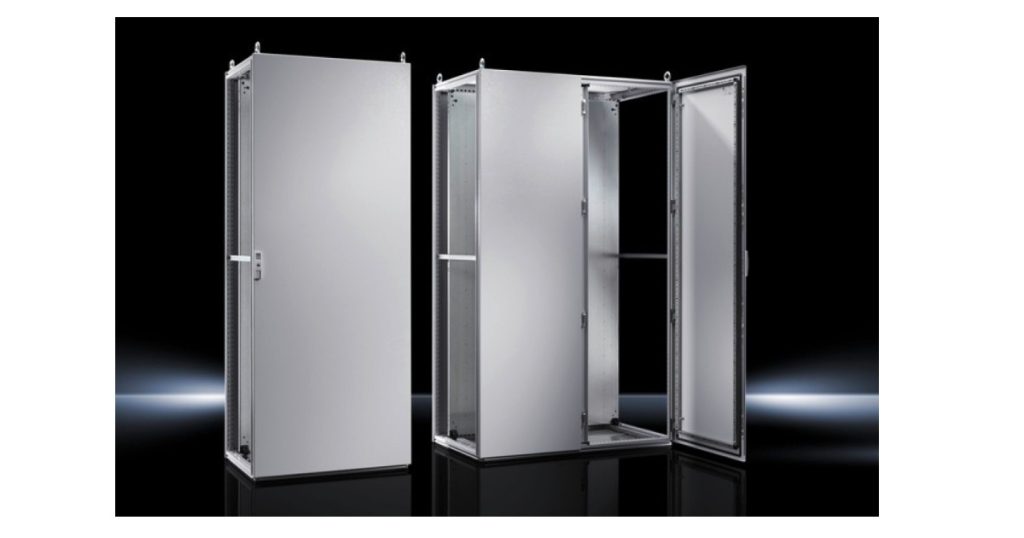

TS 8 Baying Systems: Modular & Freestanding Enclosures

Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on all sides. In addition, the integrated, automatic potential equalization of all enclosure panels and the triple machining of the surface ensures maximum safety.

Features

April 16, 2025 - Rittal_ Baying Systems TS 8 Enclosures
  • Model: TS 8006.500
  • Material Enclosure Frame: Carbon steel, 1.5 mm
  • Roof: Carbon steel, 1.5 mm
  • Door: Carbon steel, 2.0 mm
  • Rear Wall: Carbon steel, 1.5 mm
  • Base Plates: Carbon steel, 1.5 mm
  • Mounting Panel: Carbon steel, 3.0 mm
  • Surface Finish Enclosure Frame: Dipcoat-primed
  • Door, Roof & Rear Panel: Dipcoat-primed, powder-coated on the outside, textured paint
  • Mounting Plate & Base Plates: Zinc-plated
  • Color: RAL 7035
  • Supply Includes: Enclosure frame, door(s) right-hand door catch on single-door enclosures may be swapped to the left, roof plate, rear panel, 4 eyebolts, lock with 3 mm double-bit, base plates, mounting panel, 2 TS punched rails, 18 x 38 mm, 2 support strips fitted in the enclosure depth
  • Dimensions: Width 1,000 mm, Height 2,000 mm, Depth 600 mm
  • Dimensions of Mounting Plate (W x H): 899 mm x 1,896 mm
  • Protection Category IP to EN 60529: IP 55
  • Protection Category NEMA: NEMA 1, NEMA 12
